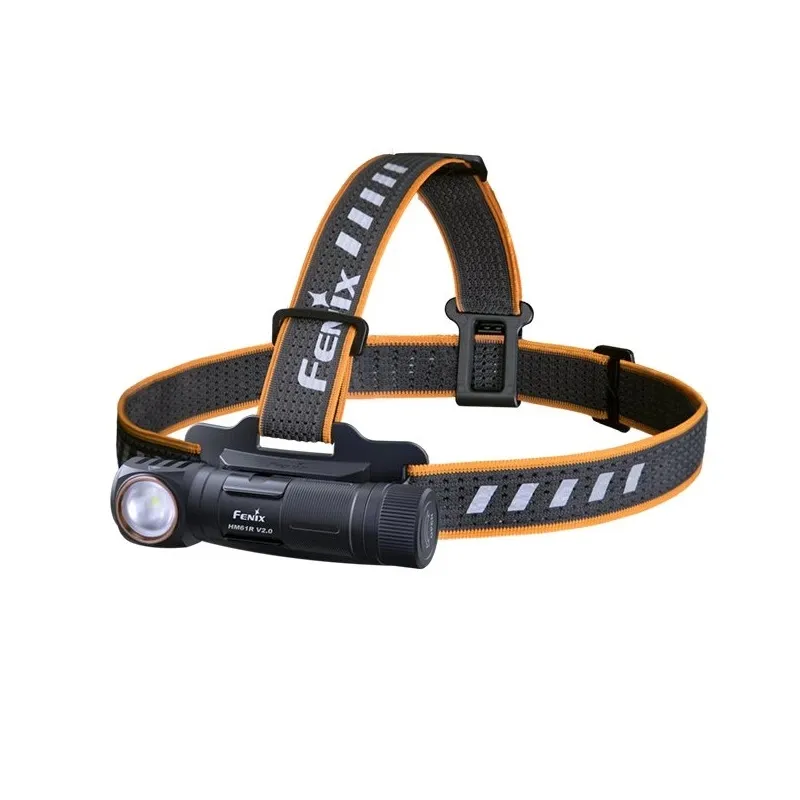

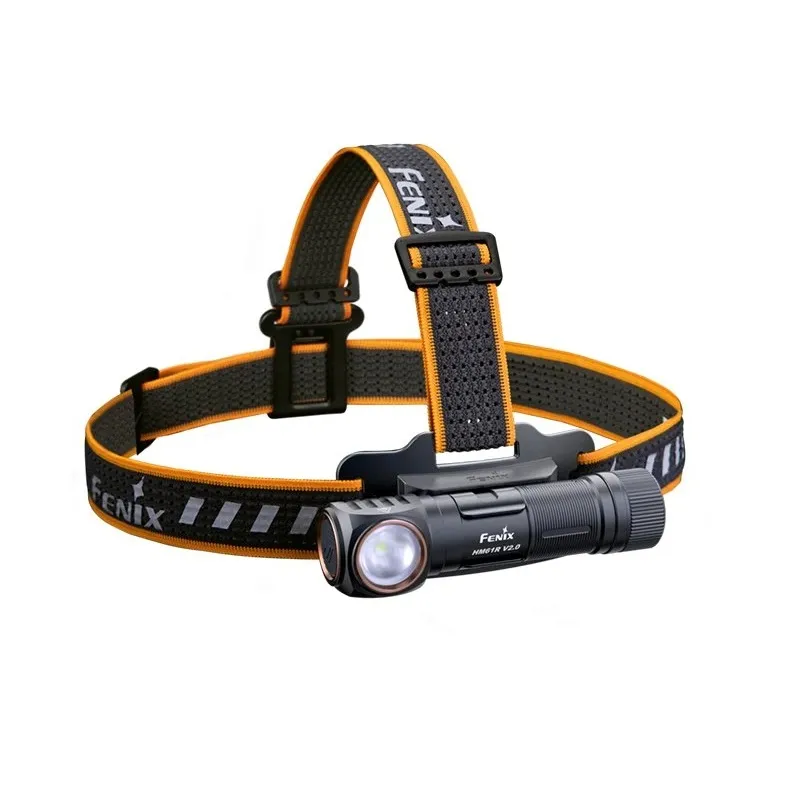

Rechargeable headlamp Fenix HM61R Amber V2.0

The new generation Fenix HM61R Amber rechargeable headlamp offers up to 1600 lumens (ANSI) of neutral white light (4500K) with a range of up to 162 meters. It is also equipped with red Everlight LEDs. It is powered by a single rechargeable 18650 Li-ion battery pack with a 3400 mAh capacity that recharges directly in the flashlight via a magnetic connector; in an emergency, two disposable CR123A lithium batteries can also be used to power the flashlight. In addition, the battery has a built-in USB-C connector, so it can be easily charged outside the headlamp without the magnetic cable. There is a built-in indicator LED in the control button so you will always know when to recharge the battery. The end of the flashlight is magnetic, so it can easily be attached to anything metal. The HM61R has eight lighting modes that allow you to choose between high power and long lasting(up to 400 hours). The lamp is powered by a digitally regulated constant current to guarantee constant light output even when the voltage in the batteries is reduced (when they are slowly discharging).

The all-metal construction ensures high durability, optimal cooling and is also fully waterproof according to IP68 standard up to a depth of 2 meters under water. The practicality of the headlamp is enhanced by the ability to remove the light from the head holder and use it as a pocket or work torch. Additionally, the headlamp is complete with a steel removable clip, so you can easily attach it to your pocket or strap. The Fenix HM61R multi-functional flashlight is the ideal companion for a variety of sporting activities, outdoor and home trips, and work.

The HM61R Amber V2.0 version is specially adapted for the Czech and Slovak market, it differs from the standard version in the following points

• The included battery is equipped with its own USB-C connector.
• The diode has a neutral shade of light instead of cold
• The high mode has an output of 400 lumens. The battery life in high mode is thus extended compared to the standard HM61R V2.0.
• The stronger red light has a maximum output of up to 10 lumens.
• Memory for the last red light mode.
• Switches to white light when unlocked.

All luminaire parameters (lumen output, battery run time, waterproof, range and shockproof) are measured in accordance with ANSI/NEMA FL 1-2009.

Fenix HM61R Amber V.0 Headlamp Parameters

• A premium performance Luminus SST-40 LED with a neutral light tint (4500K) and a lifetime of 50,000 hours and two red Everlight LEDs are used.
• Five white light modes: 1600 lumens (2 hours) -> 400 lumens (4 hours) -> 150 lumens (12 hours) -> 50 lumens (35 hours) -> 5 lumens (300 hours)
• Three red light modes: 1 lumen(400 hours) -> 10 lumens (40 hours) -> 10 lumens red flash (80 hours)

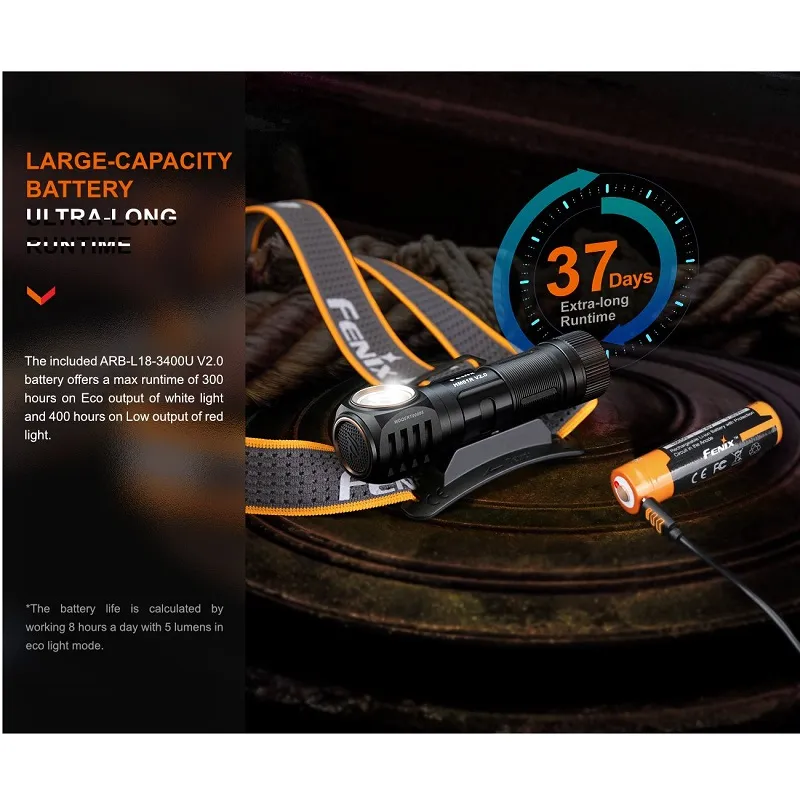

• Measured with 18650 Li-ion battery with 3400 mAh capacity (included).
• Power supply: one 18650 Li-ion battery or, in an emergency, two disposable CR123A batteries.
• Intelligent overheating protection.
• Digital constant power control.
• Charging via magnetic connector in the headlamp or via USB-C directly on the battery.
• Charging a fully discharged Fenix ARB-L18-3400U V2.0 battery takes approximately 4 hours.
• Smooth light cone with a range of up to 162 meters (6566 cd)
• Dimensions: 101 mm length x 36 mm width x 46 mm height (including headlamp holder).
• Weight: 157 grams (including strap and battery pack), 99.5 grams (without battery pack).
• Battery capacity indication and low voltage warning.
• The flashlight has memory and always turns on in the last set mode (applies to both white and red light, except for the highest 1600 lumens mode, when it turns on in 400 lumens mode).
• Magnetic end cap, the headlamp can be attached to anything iron.
• Protection against reverse insertion of the battery (reverse polarity).
• Comfort strap with reflective elements.
• Easy operation with one switch.
• Body made of high-strength aerospace aluminum alloy A6061-T6.
• Durable hard scratch resistant surface - Type III hard anodized.
• Shock resistant to drops from a height of 2 metres.
• Dustproof and waterproof to IP68 standard (tested underwater at a depth of 2 metres for 30 minutes).
• High quality TIR optics with high light transmission.
• Includes HM61R Amber V2.0 headlamp, clip, ARB-L18-3400U V2.0 battery, spare o-ring, magnetic USB charging cable (not compatible with older version HM61R).
• A set of black straps AFH-02 without reflective elements can be purchased - they are suitable for e.g. military, police or hunters.
• The headlamp can be further purchased with USB mains or car adapters, USB-C cable, Fenix APB-20 case, Fenix APB-30 large case, twofish bikeblock, lockblock or bike handlebar mount brackets.
• For easy attachment to a helmet, the Fenix ALG-03 adhesive mount or the Fenix ALG-04 NVG mount can be purchased, .

Use

There may be a black insulating cap inside the battery pack at the factory. Remove it from the battery pack before first use.

• With the headlamp switched off, turn on the headlamp to the last used white light mode by holding the button for 0.5 seconds (except for the highest 1600 lumens mode, when it will turn on in 400 lumens mode).
• The off headlamp is switched to the last used red light mode by pressing the button twice quickly.
• The switched on headlamp is switched off by holding the button for 0.5 seconds.

As long as the headlamp is switched on, the power modes can be cycled through in the sequence 5 - 50 - 150 - 400 - 1600 lumens (when switched on to white light) or red 1 lumen - red 10 lumens - red flash (when switched on to red light) by briefly pressing the button. The lamp has a memory and will always switch on in the last set mode (applies to both white and red light, except for the highest mode of 1600 lumens, when it will switch on in 400 lumens mode).

When the headlamp isswitched on, it is possible to switch between white and red light by holding the side button for 1.2 seconds.

Battery charge indication: when the headlamp is switched off, one short press of the button turns on the battery charge indication for 3 seconds, which is shown by the coloured backlight of the button:

• Constant green: 100% - 85%
• Green flashing: 85% - 50%
• Constant red: 50% - 25%
• Red flashing: 25% or less (Recharge the headlamp as soon as possible.

Indication only works properly with a rechargeable 18650 battery.

Overheat protection: when using the flashlight on high power modes for long periods of time, a large amount of heat will accumulate. When the headlamp reaches a temperature of 65°C or higher, it will automatically reduce the power to lower the temperature. When the temperature drops below 65 °C, it will then allow the user to select high modes again.

Charging: plug the charging cable into the USB connector of a computer, mains adapter or car. Attach the cable to the charging plate on the headlamp, it attaches itself with magnets. During charging, the indicator light in the button glows red, when charging is complete it turns green. During charging, all red light modes and all white light modes except the highest one can be used, but the charging time will be adequately extended. Charging a fully discharged Fenix ARB-L18-3400U V2.0 battery takes approximately 4 hours.

Low battery alert: If the battery voltage drops below the set level, the headlamp will automatically switch to lower power modes. If this occurs at low power, the battery charge indicator will flash to remind you to recharge or replace the battery in a timely manner. Note: This feature is only active with a rechargeable Li-ion 18650 battery pack.

Lock the headlamp against unwanted switching on: when the headlamp is off, press and hold the side switch for 3 seconds, the flashlight will flash four times in red mode to indicate the locked status.
Unlock: when the headlamp is locked, press the side switch for 3 seconds, the lamp will flash four times in red to activate the Eco white light mode. If the headlamp is locked, it will flash four times when the switches are clicked or pressed briefly to indicate the locked state. Unintentional switching on in the boot can also be prevented by loosening the headlamp battery cap a quarter turn, this breaks the electrical contact and the headlamp cannot be switched on.

Warning

• Do not disassemble the sealed part in the flashlight head yourself, this will violate the warranty.
• If disposable CR123A batteries are used, do not attempt to charge them in the flashlight.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the lantern will be properly protected against water.
• If the lantern flickers, does not switch to higher power modes, or does not light up, it may be due to one of the following reasons:
  • The battery is almost dead - charge it or replace it.
  • The contacts inside the lamp are dirty - clean them with a cotton swab dipped in alcohol.
  • The back of the lamp is loose - tighten it.
