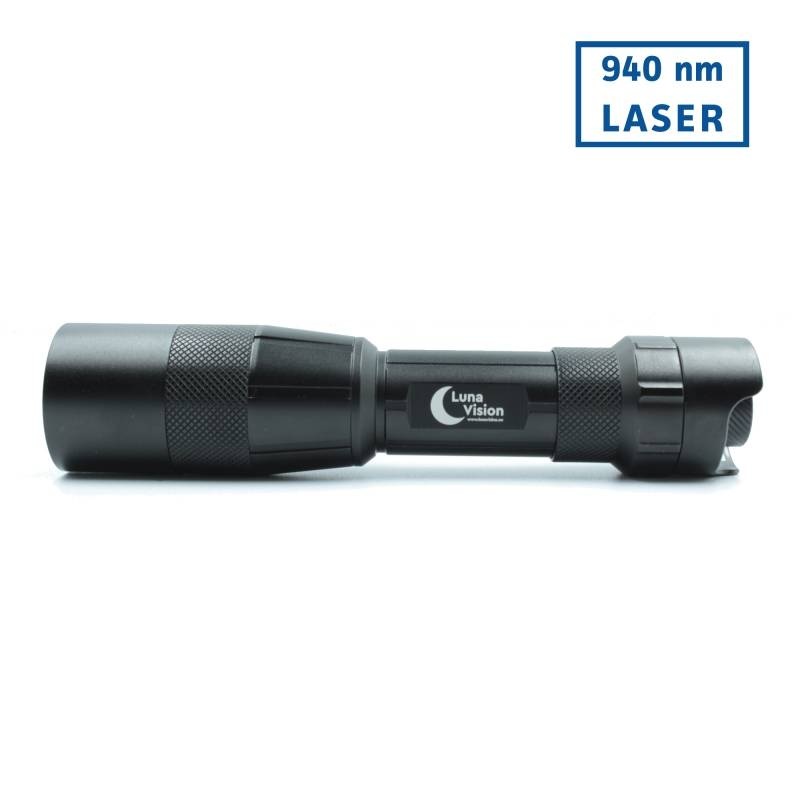

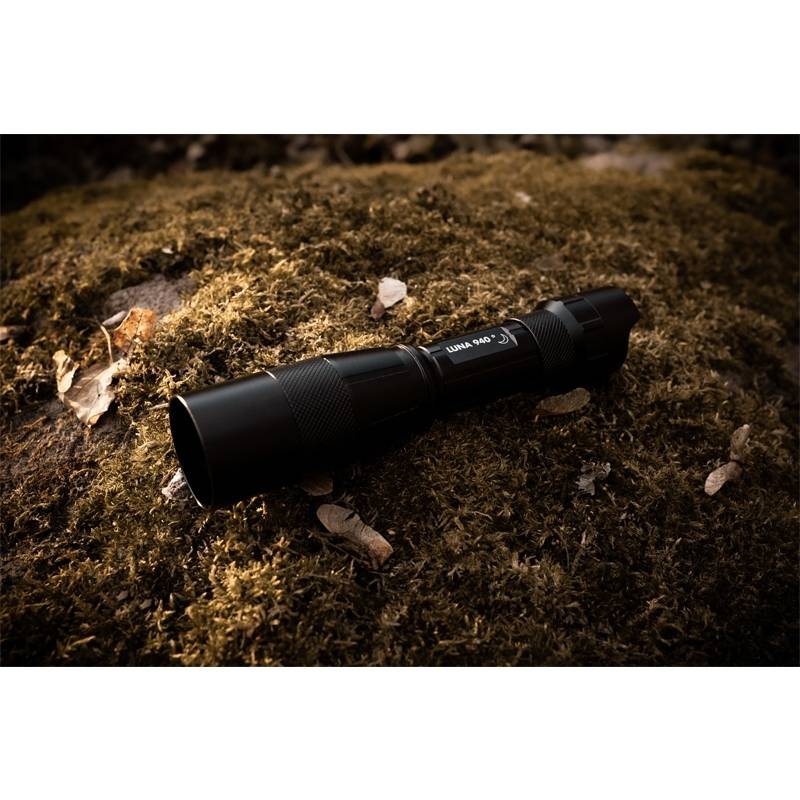

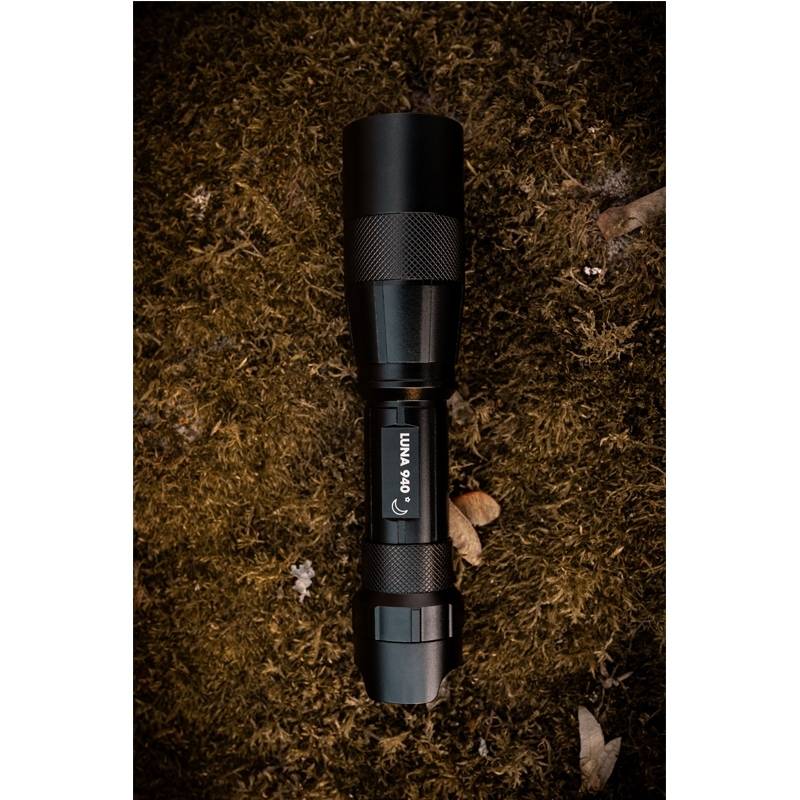

LUNAVISION 940 KIT (LASER MODEL)

The LunaVision 940 invisible illuminator is assembled from the highest quality components.

We use the original German OSRAM chip, thanks to which the LunaVision 940 has the best parameters among IR illuminators on the market!

Thanks to its 940 nm wavelength, it is absolutely invisible to wildlife and the human eye.

The advantage of the illuminator is the infinitely variable power adjustment and centering of the beam both horizontally and vertically.

The main advantages of the 940 laser illuminator are based on its physical properties, in particular the so-called coherence of the laser light:

• the focused beam of the illuminator (the illuminator has the possibility of zooming) does not expand in width with increasing distance as quickly as, for example, the focused beam of a diode illuminator
• it is therefore able to illuminate the object to be observed even at greater distances and thus ensure a high-quality night vision image of the observed objects
• the laser light does not suffer from such strong reflections in higher humidity (fog, rain - typical for autumn weather)

Features

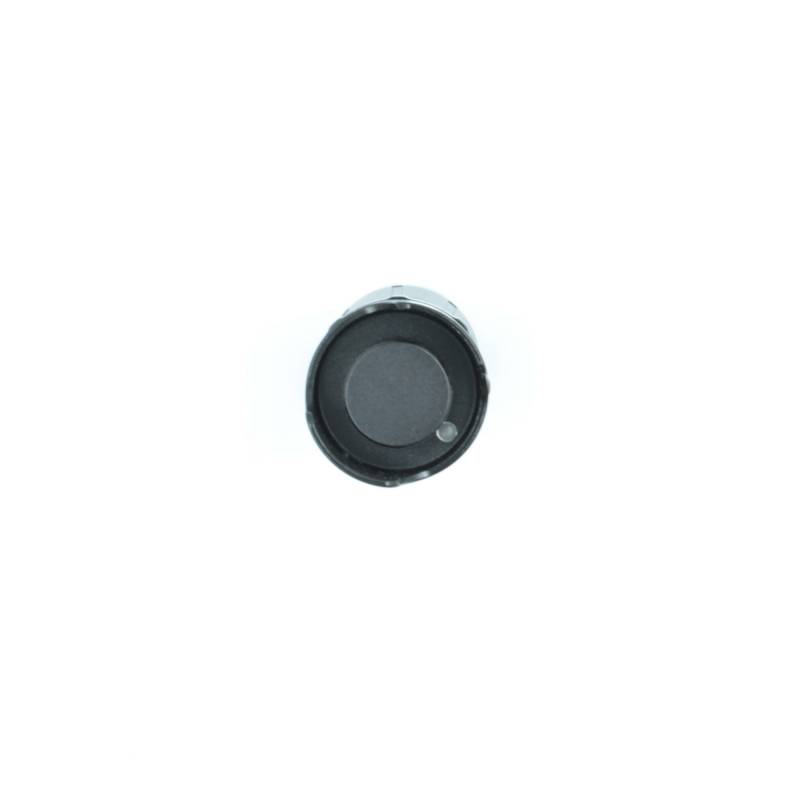

• rotary switch with intensity adjustment
• adjustable beam width (zoom function)

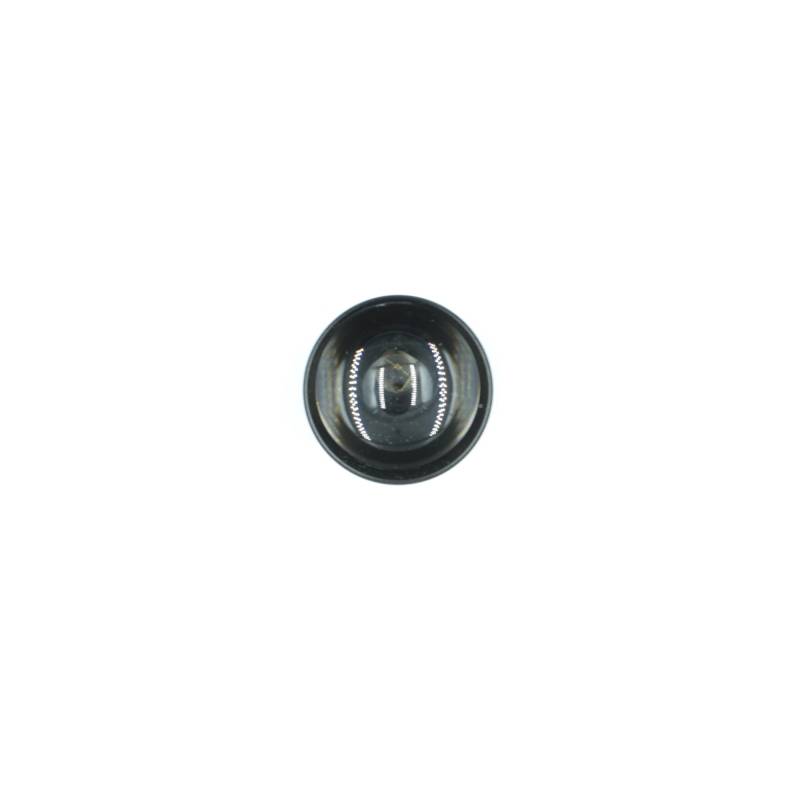

• by rotating the reflector of the illuminator
• illuminator with state-of-the-art OSRAM chip (performance is approx. 5.5x higher than Pulsar 940)
• thanks to the use of a charger for the 18650 Li-ion battery, you have no additional costs for the operation of the illuminator
• indication of the illuminator switching on by a small diode

Technical parameters

• Chip: Osram LASER
• IR wavelength: 940 nm
• Laser diode power: 2 W
• Beam deflection: 6 - 10 degrees
• Operating temperature range: -20 °C - +40 °C
• Output voltage: 5 V
• Battery type: 1x 18650
• Operating time: 2 hours continuously at maximum power, with reduced power the time is extended (4 hours at 50% power)

Dimensions and weight

• weight: 175 g
• length: 16.5 cm
• outer diameter of head: 3.6 cm
• tube diameter: 2,5 cm

Contents of the package

• 1x LunaVision 940 illuminator (LASER model)
• 1x remote trigger for LunaVision illuminator with potentiometer
• 1x battery charger
• 1x instructions in Slovak and warranty card
