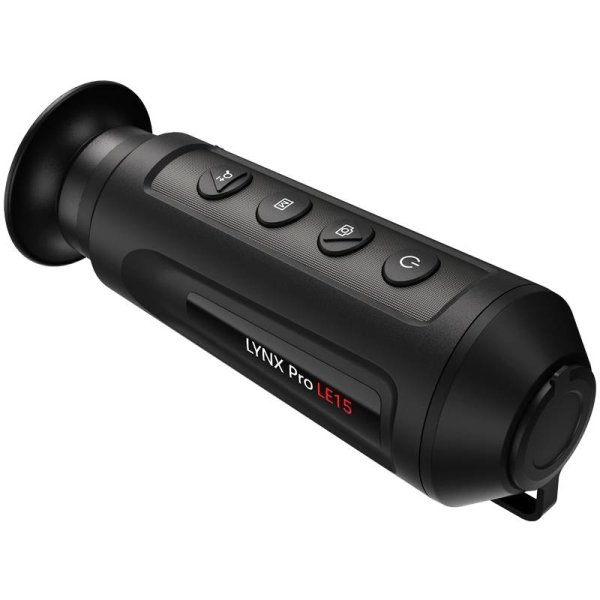

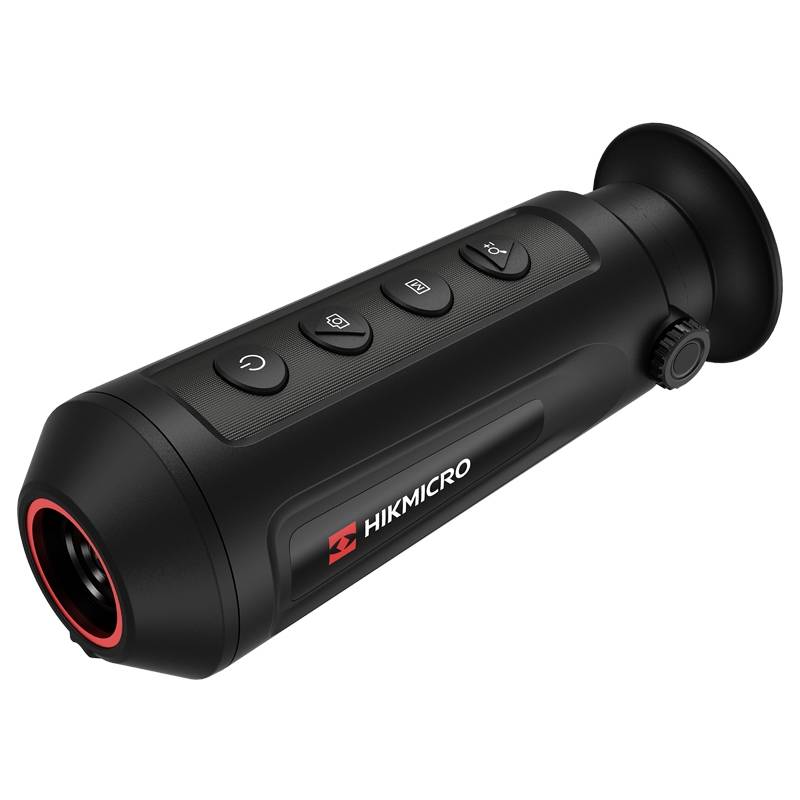

The HIKMICRO LYNX PRO LE15 thermal imaging camera is equipped with a high quality 256×192 px 12μm resolution core (12 micron technology) and a new 720×540 px LCOS display with a 15mm lens and 8x digital zoom.
HIKMICRO is one of the few manufacturers to have in-house production of a 384×288 resolution, VOx-type core, making the latest thermal imaging cameras great value for money. The lower the NETD
...
Do you want to be informed about product availability?
Try our watch dog
The HIKMICRO LYNX PRO LE15 thermal imaging camera is equipped with a high quality 256×192 px 12μm resolution core (12 micron technology) and a new 720×540 px LCOS display with a 15mm lens and 8x digital zoom.
HIKMICRO is one of the few manufacturers to have in-house production of a 384×288 resolution, VOx-type core, making the latest thermal imaging cameras great value for money. The lower the NETD value (35mk), the better the sensor can record small temperature differences of objects with perfect images!
The thermal imager supports hot spot (tracking the hottest point in the image), ratio rangefinder and Wi-Fi functions. The integrated 8 GB memory offers storage space for images and video clips. Recorded files can be downloaded when connected to a PC via the USB port.
Parameters:
Magnification: 1.42 - 11.36
Field of view: 11.69°×8.78°
Waterproof: IP67
Weight: 280g
Operating Temperature: -20°C to +55°C
Display: 0.2 inch, LCOS, 720×540
Detection distance: 708m
Lens diameter: 15mm
Digital Zoom: 1×, 2×, 4×, 8×
Sensor: 256×192, 12μm
Battery: Built-in rechargeable lithium battery
Dimension in mm: 158.3×61×57 mm
Lens: 15mm, F1.0
Battery life: up to 8hrs.
WiFi: Yes
Image frequency less than 35 mK
Features:
Distance Measurement: the device will perform the distance measurement function after marking the top and bottom of the target. The result is the observer's distance from the target in meters.
Hot-Spot: The instrument detects and marks the spot/object with the hottest value in a given image. Thus you will not miss, for example, animals hiding in the bushes, etc.
Wi-Fi Hot Spot.
Storage Space.
Digital Zoom: The device supports 8× digital zoom.
Package Includes:
HIKMICRO LYNX PRO thermal imager
Instructions in English
Cloth for cleaning the lens from dust
USB-C cable
Protective pouch for the thermal camera
Hand strap
