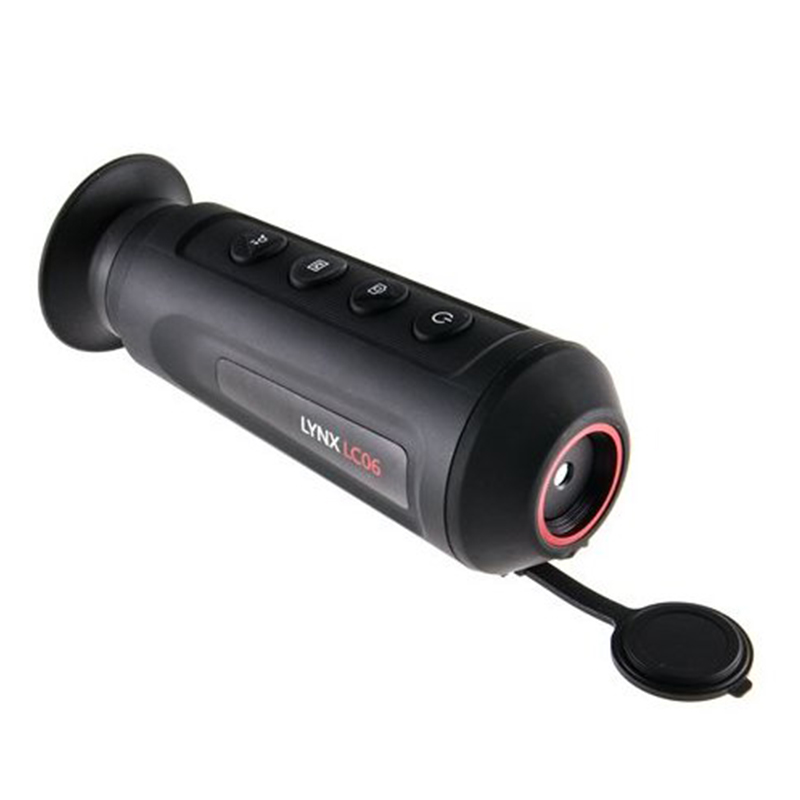

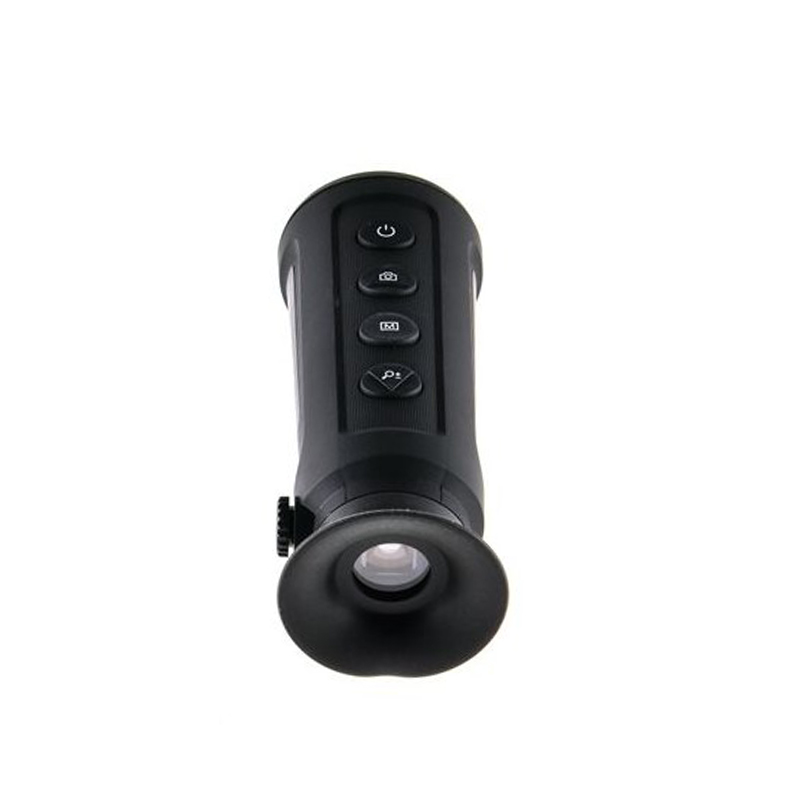

The Hikmicro LC06 thermal imaging camera is equipped with a high quality 160×120px resolution core and a NEW 720x540px LCOS display with a 6mm lens.
The thermal imager supports hot spot (tracking the hottest point in the image), ratio rangefinder and Wi-Fi functions.
Features:
160*120px detector resolution, high sensitivity detector,
Power saving mode (Extends battery life)
DDE Technology (Digital Deta
...
Do you want to be informed about product availability?
Try our watch dog
The Hikmicro LC06 thermal imaging camera is equipped with a high quality 160×120px resolution core and a NEW 720x540px LCOS display with a 6mm lens.
The thermal imager supports hot spot (tracking the hottest point in the image), ratio rangefinder and Wi-Fi functions.
Features:
160*120px detector resolution, high sensitivity detector,
Power saving mode (Extends battery life)
DDE Technology (Digital Detail Enhancement = You won't miss a detail)
3D DNR Technology (3D Digital Noise Reduction = 3D Digital Noise Reduction = grain-free image)
Adaptive AGC Technology (Automatic Gain Control = Automatic signal strength adjustment = Automatically adjusts signal strength according to the specific scene being viewed)
Display resolution 720x540 pixels, 0.2-inch LCOS
Built-in rechargeable lithium-ion battery
Over 10 hours of continuous operation (without Wi-Fi on)
light weight
rangefinder
Modern USB-C interface
Waterproof IPX7 (protected against submersion in water. Submersion for 30 minutes to a depth of 1 meter) = the higher the better (max IPX8)
Parameters:
Detector resolution: 160 × 120 px, VOx, 17 micrometers
NETD (thermal sensitivity) <35 mk (at 25°C, F# = 1.0)
Lens: 6.2 mm
Magnification: 0.6-2.4 ×
Digital magnification: 1×, 2×, 4×
Field of view: 24.70° × 18.70°
Aperture F 1.1
Heat display palettes Black, White, Red and Fusion
Vehicle Detection: 559 m
Human Detection: 182 m
Display 0.2 inch, LCOS, 720 × 540 px
Hottest point detection: yes
Wi-Fi Hot Spot: yes
Built-in storage: 8 GB
Photo recording capability: yes
Video recording capability: yes
Rangefinder: yes, proportional
Battery type: Lithium
Battery operating time: up to 10 h
Power supply 5 VDC / 2 A, 1.5 W, USB-C type
Dimensions: (l × w × d) 158.3 mm × 61 mm × 57 mm
Weight: 250 g
Warranty: 3 years
