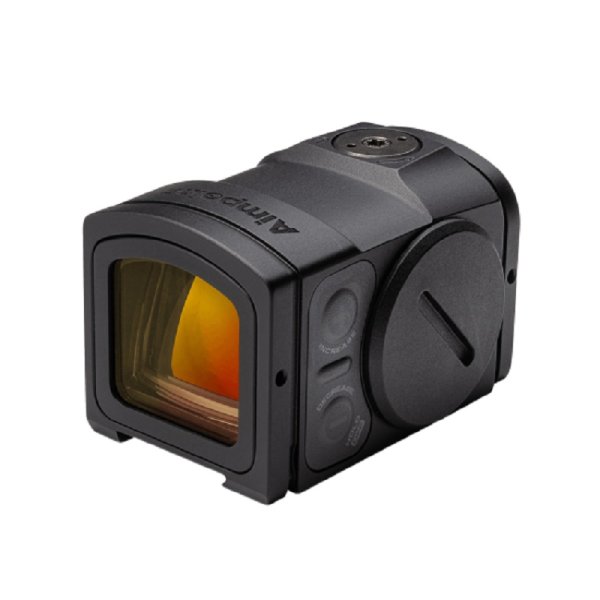

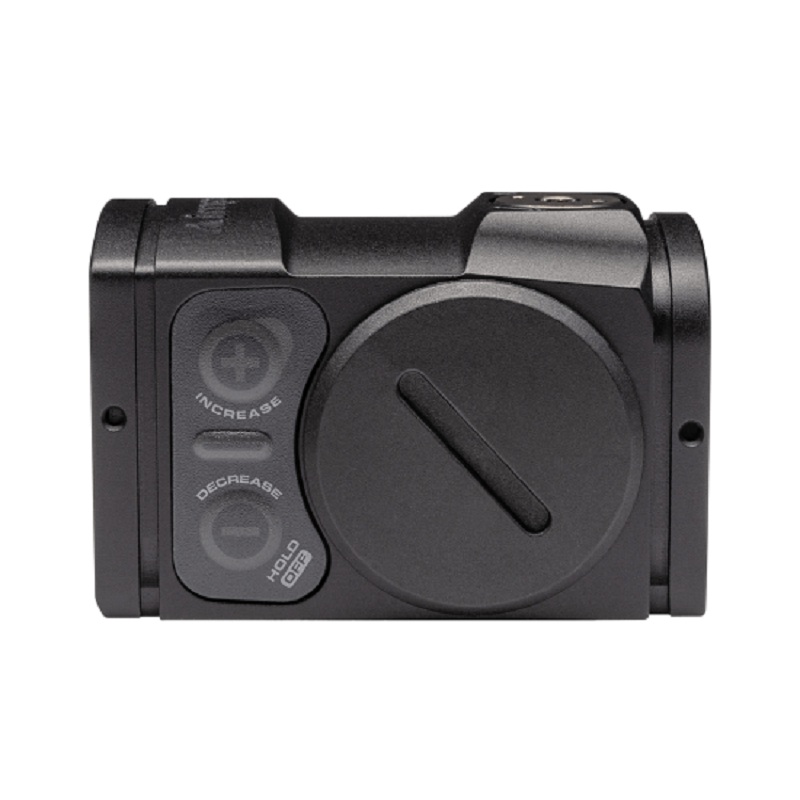

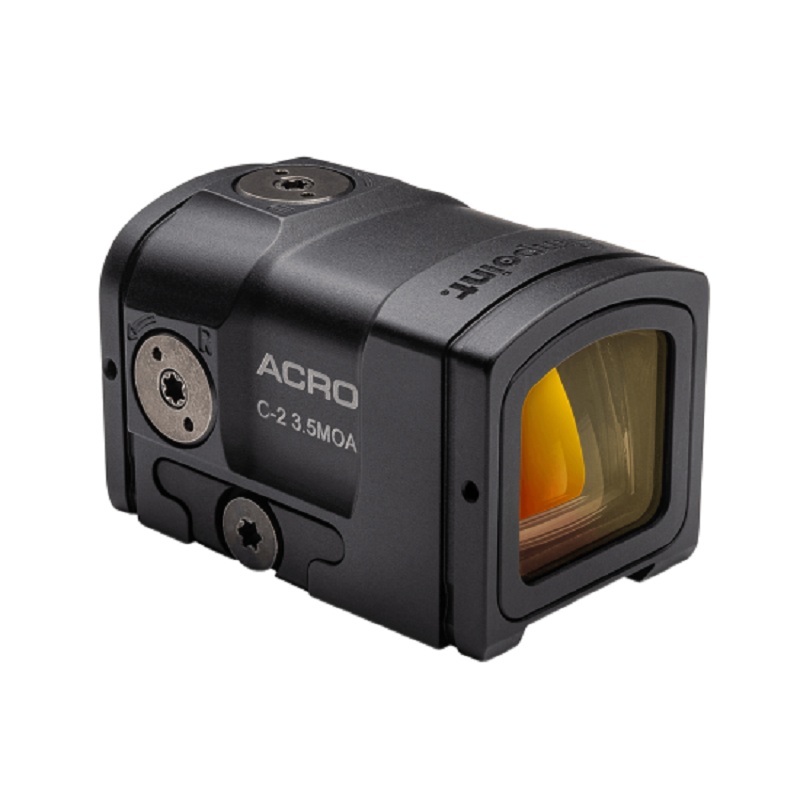

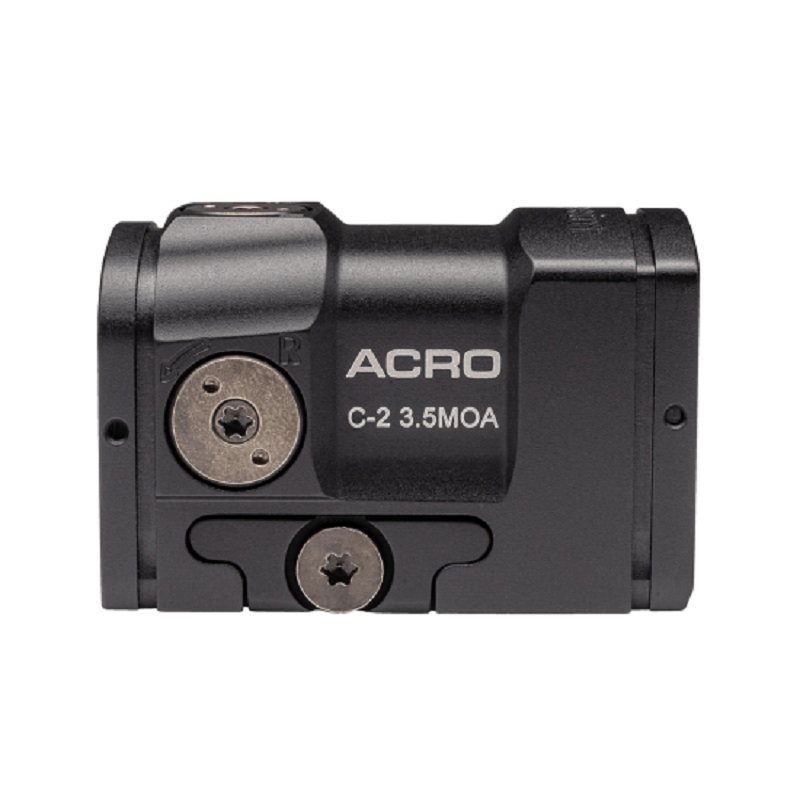

Aimpoint - Acro Collimator C-2 3.5 MOA (200692)

Optical specifications

• Principle of operation: reflective collimator with LED
• Optical magnification: 1x
• Target dot size: 3.5 MOA
• Dot Intensity: Visible versus background brightness 0.1 to 55,000 lx
• Optical Signature: No optical signature is visible at 10 meters on the front at appropriate settings with NVD
• Dot colour: Maximum wavelength: 655 ± 15 nm
• NVD compatible: Yes
• Optical coating: anti-reflective, all surfaces and multi-layer. Compatible with NVD 1, 2, 3
• Light aperture: 16 × 16 mm (0.63 × 0.63 inch)
• Viewing time: unlimited

Power source

• Battery type: 3V lithium battery, CR1225 type
• Battery life - daily use: 1.5 years (15,000 h) of continuous use in position 6 and more than 8 years in NVD setting
• Power intensity: 2 NVD and 8 daylight settings, including 1 extra bright

Physical specifications

• Length: 47 mm (1.9 inches)
• Width: 30 mm (1.2 inches)
• Height: 30 mm (1.2 inches)
• Weight (including battery): 60 g (2.1 oz)
• Housing Material: High Strength Aluminum
• Cover surface and color: Matte black to dark gray
• Anodized Housing: Yes
• Surface finish: anodized, semi-matte black
• Adjustment: Range ± 1 m at 100 meters (± 1 yd at 100 yds) in wind and altitude, 1 click = 17 mm at 100 meters = 0.6 at 100 yds

Environmental specifications

• Operating temperature range: -30°C to +60°C (-22°F to +140°F)
• Storage Temperature Ranges: -51°C to +71°C (-60°F to +160°F)
• Humidity: Controllable during and after humidity. Limits: RH: 95%, Temperature: +20°C to +50°C (+68°F to +122°F), cyclic
• Immersion: to a depth of 5 m (15 ft)
• Shock: Tested with 20,000 rounds mounted on a 40 caliber S&W
• Vibration. Limits: Vibration, sinusoids in the frequency range of 10 - 150 Hz. Frequency: 10 - 30 Hz, ± 1.587 mm,
• Frequency: 30 - 150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
• Aimpoint® Acro C-1 (Advanced Compact Reflex Optic) with its minimal size is the smallest closed red-eye system on the market.
• The Acro C-1 has been developed and optimized for use on optical pistols in combination with the Acro adapter.
• However, the wide range of mounting solutions available for the Acro series makes it a versatile sight that can be used on several weapon platforms.
• The sealed system makes this system reliable and functional in all weather conditions and when tested with 20,000 rounds on a 40 caliber S&W
• this small optic was shown to lead the way in ruggedness and reliability.
• It's a lightweight, low-profile optic that allows quick target acquisition and an unobstructed field of view for hunters and sport shooters alike.
