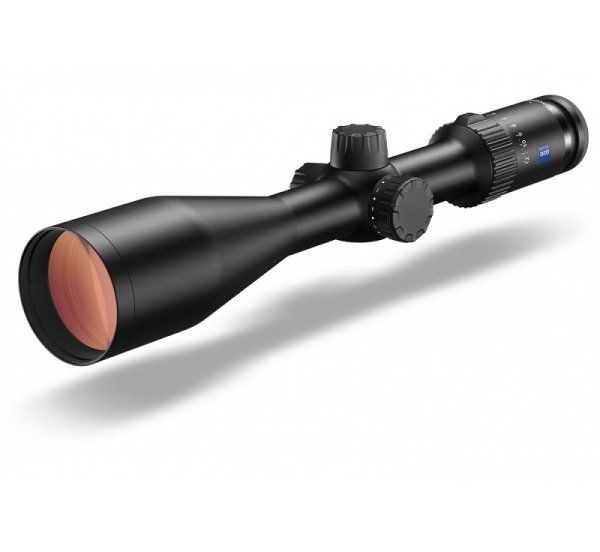

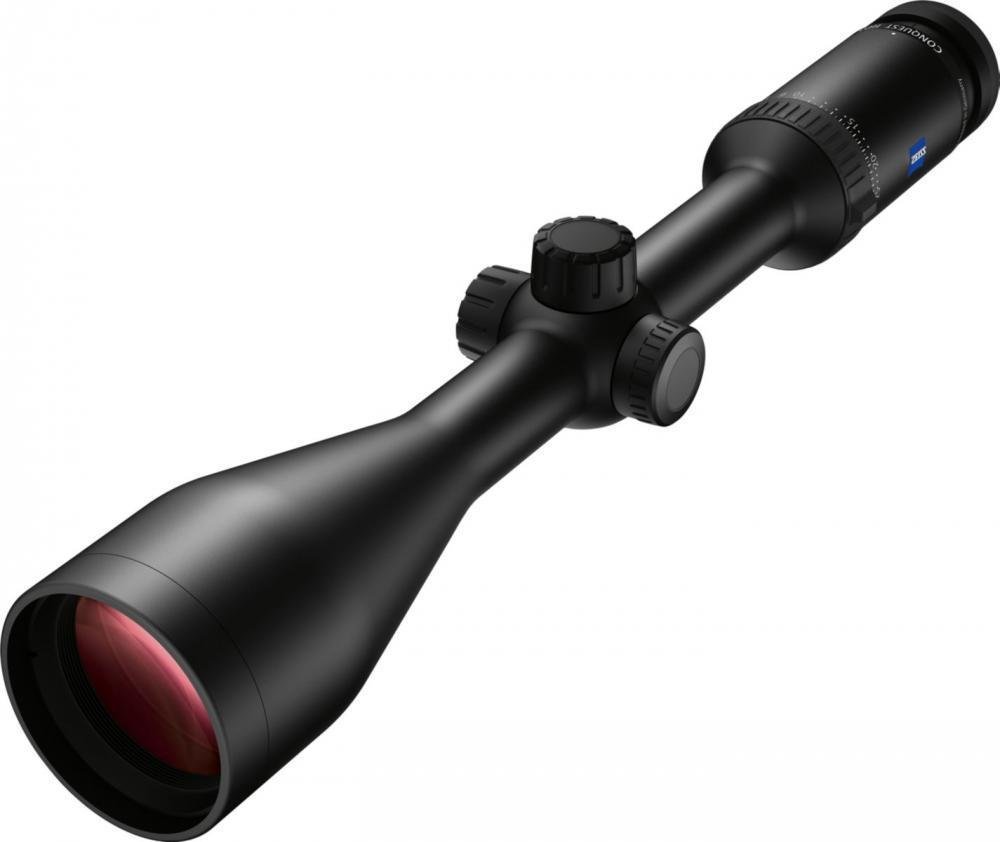

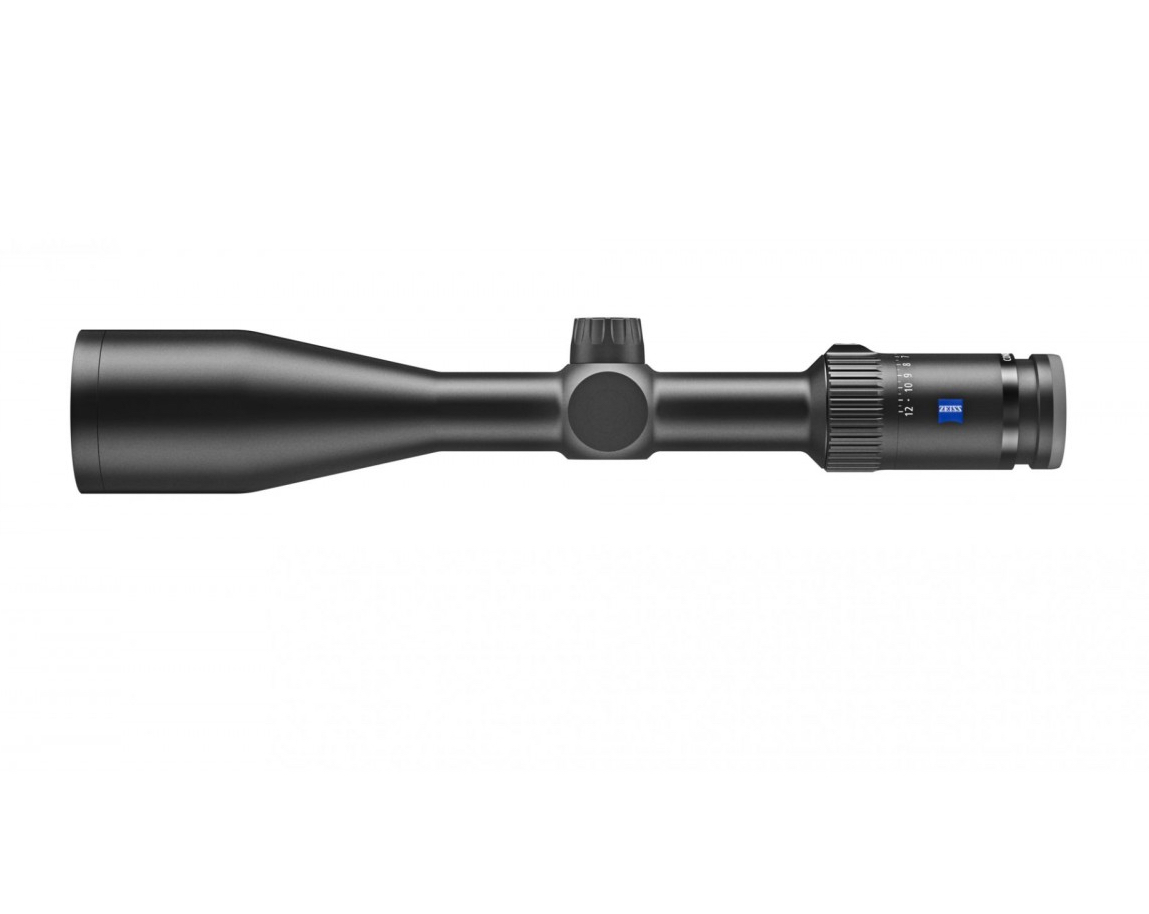

Mounting on rings- diameter 30mm The ZEISS CONQUEST V4 3-12 × 56 riflescope is ideal for observation hunting in twilight and at night.

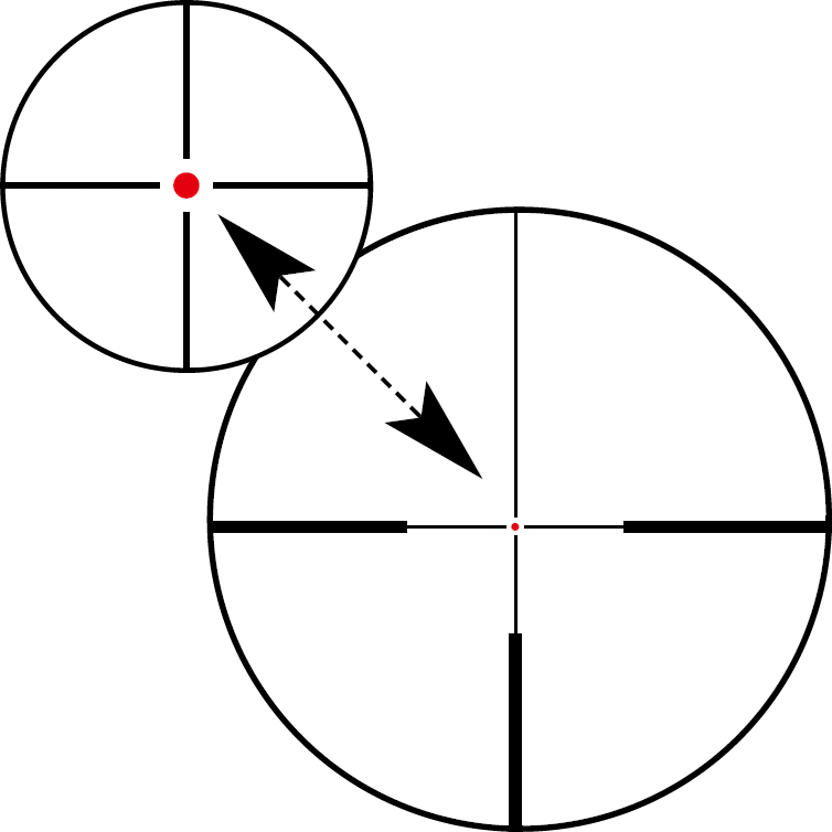

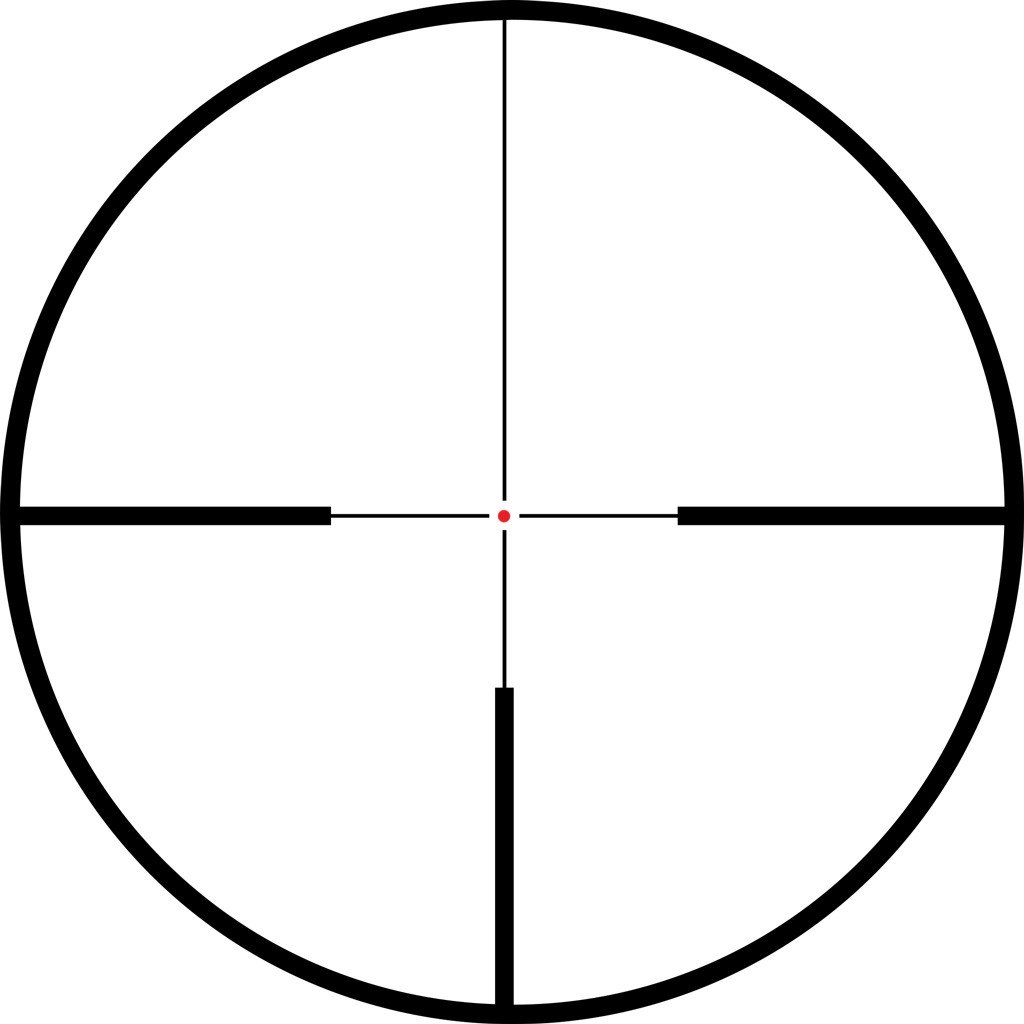

The high probability of an accurate hit is due to the large objective lens diameter and illuminated reticle (60 illuminated in the 2nd viewing plane, minimum target overlap at 12x magnification-only 0.55cm at 100m).
It is suitable for hunting even in low light conditions.

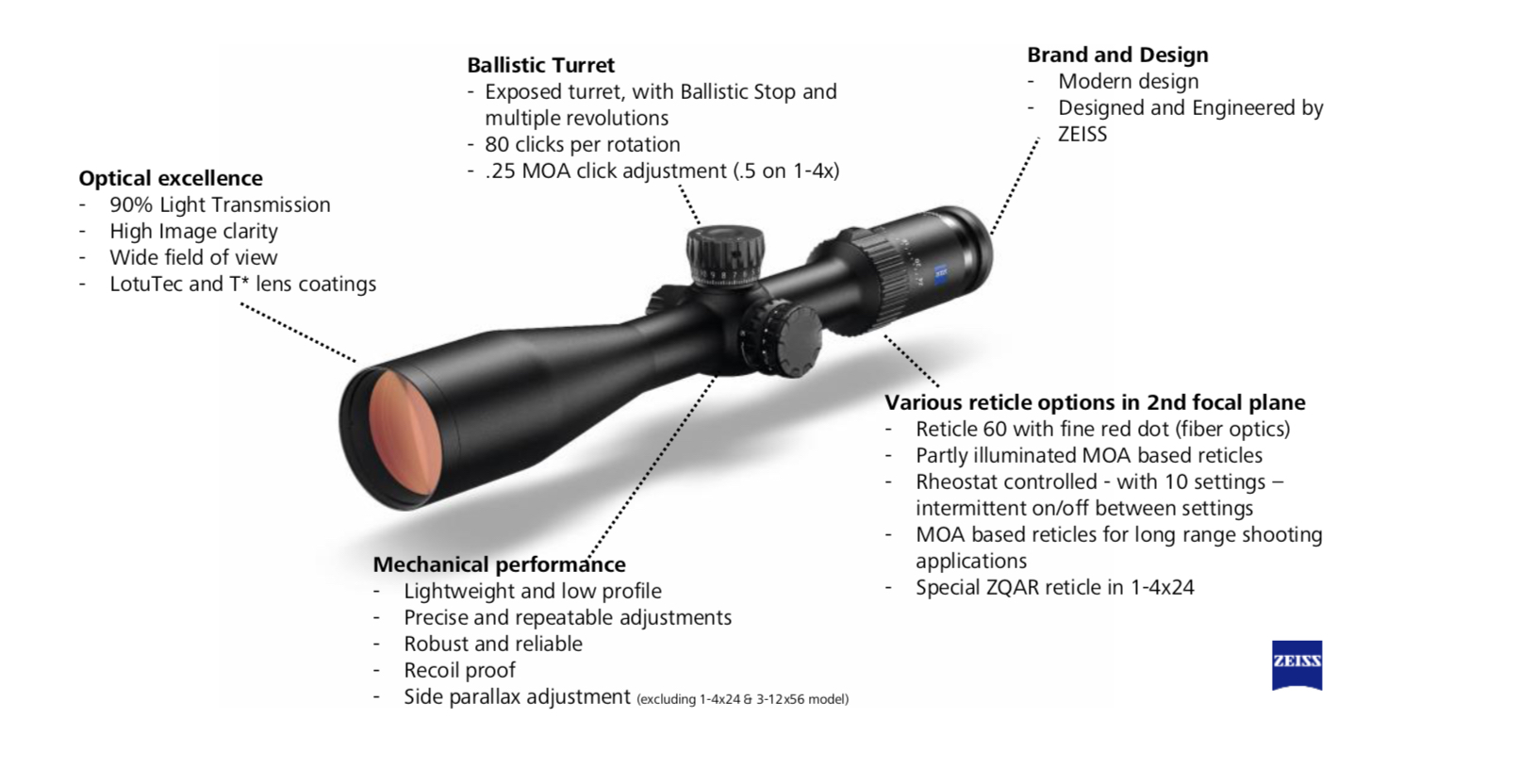

Conquest V4 series riflescopes combine the proven ZEISS optics concept with a robust and functional design.
Absolutely reliable mechanics set a new standard in its class.
When mounting the riflescope on the gun, high rings must be used!
- Magnification - 3.0 - 12 x
- Effective lens diameter - 27.7 mm and 56 mm
- Output pupil diameter - 9.2 mm and 4.7 mm
- Dimming factor - 9.1 - 25.9
- Field of view at 100m - 12.7m - 3.2m
- Lens angle of view - 7.2° - 1.8°
- Dioptric correction -3.0/+2
- Distance of the eye from the eyepiece - 90 mm
- Parallax -91.4 m
- Adjustment to 100m- 200 cm
- 1 click per 100m = 0.7 cm
- Tube diameter - 30 mm
- Eyepiece tube diameter - 44.0 mm
- Lens tube diameter - 62 mm
- Operating temperature -20/+55 °C
- LotuTec? - yes
- Waterproof - 400 mbar / nitrogen filled/
- Length - 368 mm
- Weight -610 g
