Infiray TUBE TS60 thermal imaging sight

InfiRay TUBE TS60 thermal imaging sight

Introducing the flagship model from InfiRay, featuring a high-end thermal sensor with a resolution of 1280 x 1024 pixels and a remarkable NETD of under 18 mk.

By integrating cutting-edge technologies, the TUBE TS60 delivers unmatched high-resolution image quality, tailored to the requirements of professional hunters.

Product Information

Advanced 1280 x 1024 pixel sensor delivers perfection With a cutting-edge, in-house developed InfiRay thermal sensor with an impressive 1280 x 1024 pixel resolution and a remarkable NETD under 18mk, setting a new standard that allows it to capture even the smallest temperature changes in harsh outdoor conditions

Round display in high resolution 2560 x 2560.

Experience unprecedented clarity with a 1.03-inch round AMOLED display at 2560 x 2560 resolution.

In addition, we've gone the extra step by redesigning 7 different color palettes for users to choose from to enhance the viewing experience

Awesome long-range detection With a 1280 x 1024 resolution sensor and high-resolution display, the TS60 boasts an impressive detection range of 3100m.

This means it has the ability to greatly enhance the long-range hunting experience.

While placing emphasis on aesthetic design, the Infiray TUBE TS60 retains an impressively lightweight body.

Additionally, it features ergonomic design features such as soft-touch buttons (silent buttons), maximizing convenience for users and enhancing their overall comfort

Ultra long device operation with its built-in 6600mAh battery and the ability to add an additional standard 18650 battery (replaceable and rechargeable), the Infiray TUBE TS60 offers an extended maximum operating time of up to 9 hours (at 22°C),

making it ideal for extended hunting.

The Infiray TUBE TS60 is ready to become your most reliable weather and hunting companion

Rigorous testing and high durability It is made of high-strength aluminum alloy materials that have undergone rigorous recoil resistance testing.

Its exceptional ruggedness and durability make the Infiray TUBE TS60 a long-lasting companion

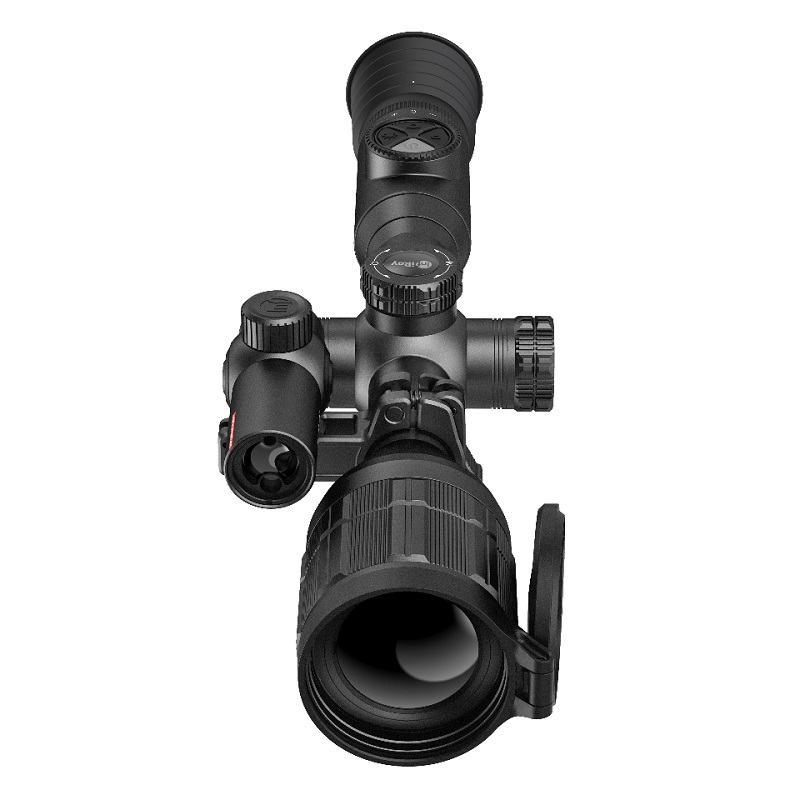

Optional accessories for more options such as the 1200m laser rangefinder with ballistic calculator - offered as an optional accessory that users can choose to suit their needs.

With the Infiray TUBE TS60, then, the possibilities are endless..

Parameters of the Infiray TUBE TS60:

• Sensor resolution - 1280x1024 pixel
• Pixel size - 12μm
• NETD Sensor sensitivity to temperature differences - ≤18 mk
• Sensing frequency - 50Hz
• Lens mm - 60mm/F1.0
• Field of view - 14.7 × 11.7
• Magnification - 2× ~ 16×

• Eye relief - 50mm
• Output pupil diameter - 6mm
• Diopter - -5 - +3.5
• Detection range - 3100m

Display Specification:

• AMOLED 1.03"
• Display resolution 2560×2560px
• Battery - Built-in battery / 6600mAh + 18650/3200mAh replaceable battery
• Max operating time (22℃ ) - h 9
• Wi-Fi - Yes

• Photo/Video - Yes

• Sound - Yes
• Bluetooth - Yes
• Ballistic calculator - Yes
• Laser rangefinder - Yes / included
• Connection Type - USB-C
• Storage - 128GB
• Waterproof - IP67

• Operating Temperature - -20~+50℃
• Weight - 1000 g
• Dimension - 384×104×77 mm
• Max. rifle recoil force (Eo) - 6000 Joules
• Tube diameter 30 mm

Package Contents:

• TUBE TS60
• 2x external battery
• uSB-C cable
• adapter
• picatinny mount
• laser rangefinder up to 1200m
• case for the device
